Hydrogen Chloride HCL Specialty Gas
Specification
|
Specification |
99.9% |
99.999% |
|
Carbon Dioxide |
≤400 ppm |
≤2 ppm |
|
Carbon Monoxide |
≤60 ppm |
≤1 ppm |
|
Nitrogen |
≤450 ppm |
≤2 ppm |
|
Oxygen+Argon |
≤30 ppm |
≤1 ppm |
|
THC(as Methane) |
≤5 ppm |
≤0.1 ppm |
|
Water |
≤5 ppm |
≤1 ppm |
Typical Application
1.Material: Most hydrogen chloride is used in the production of hydrochloric acid. It is also an important reagent in other industrial chemical transformations.
2.Semiconductor:In the semiconductor industry, it is used to both etch semiconductor crystals and to purify silicon via trichlorosilane (SiHCl3).
3.Laboratory: In the laboratory, anhydrous forms of the gas are particularly useful for generating chloride-based Lewis acids, which must be absolutely dry for their Lewis sites to function.

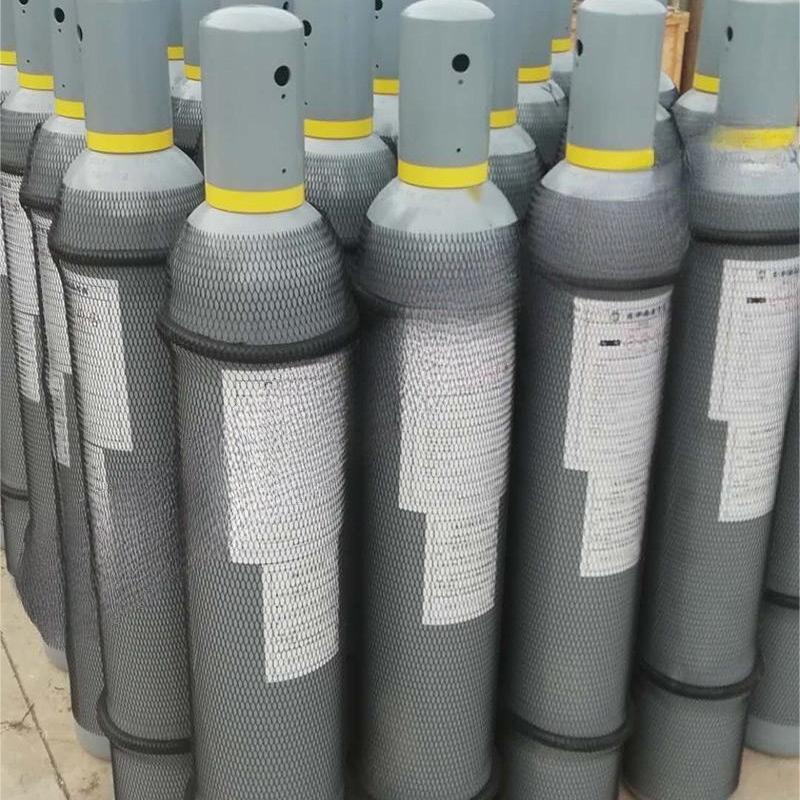

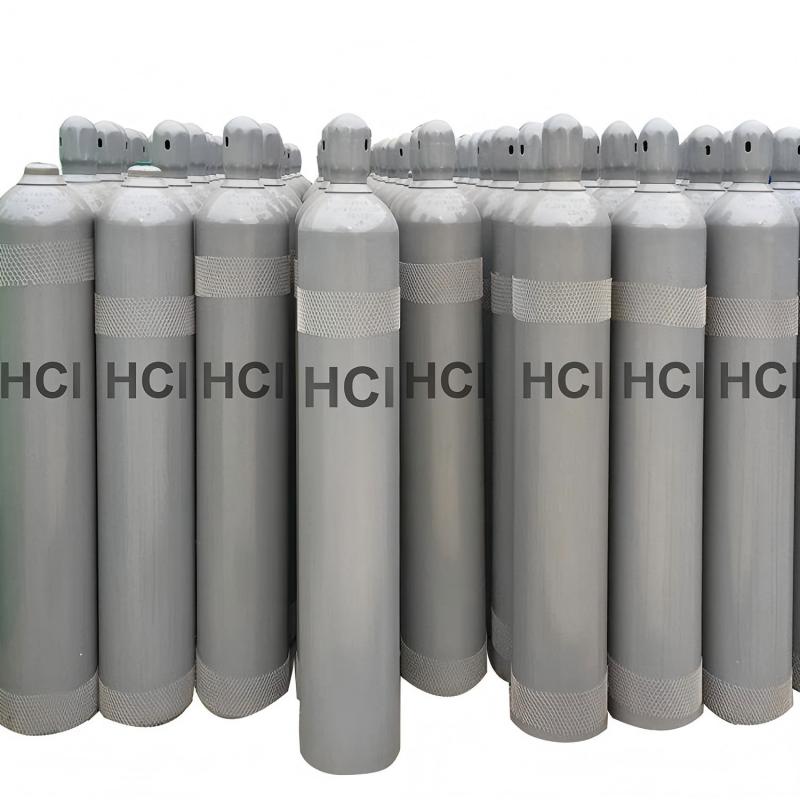

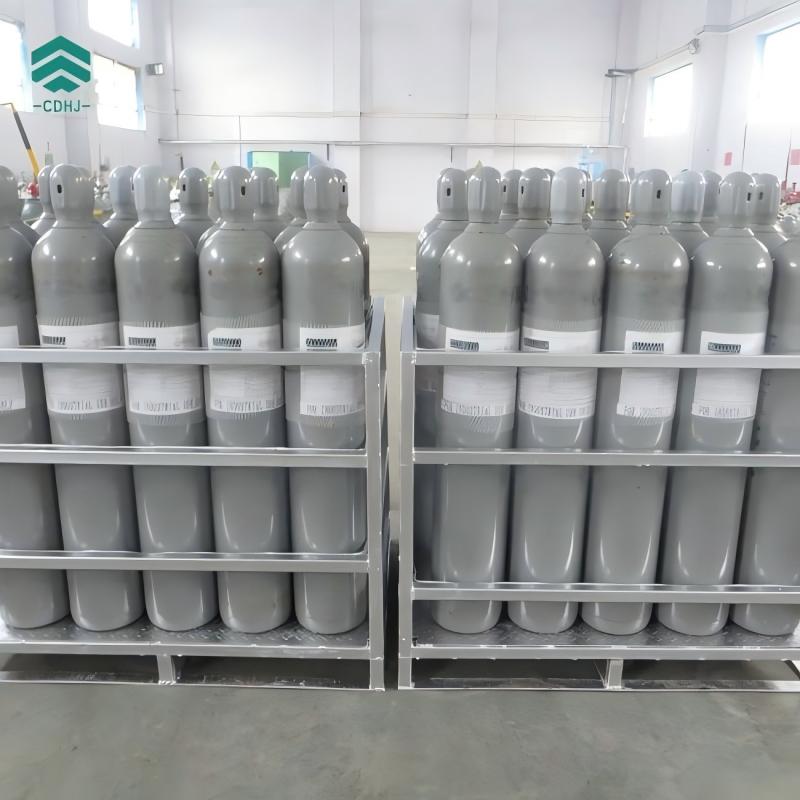

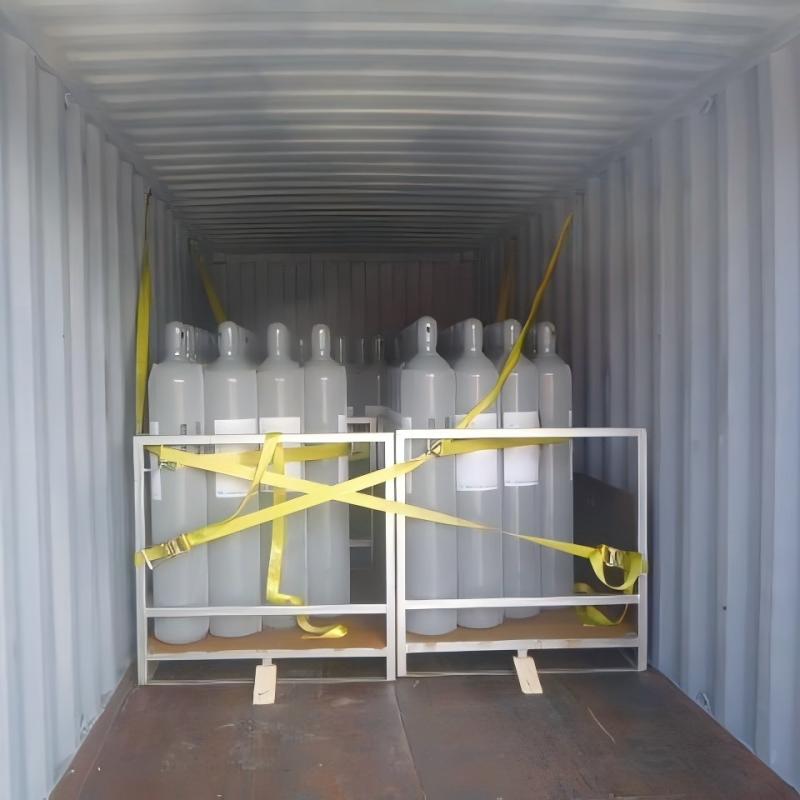

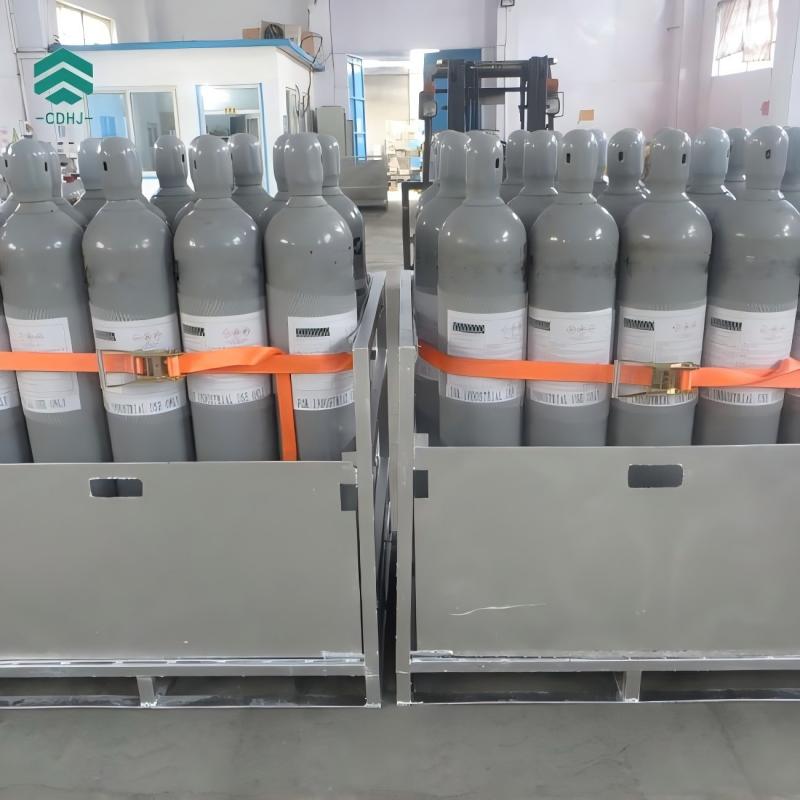

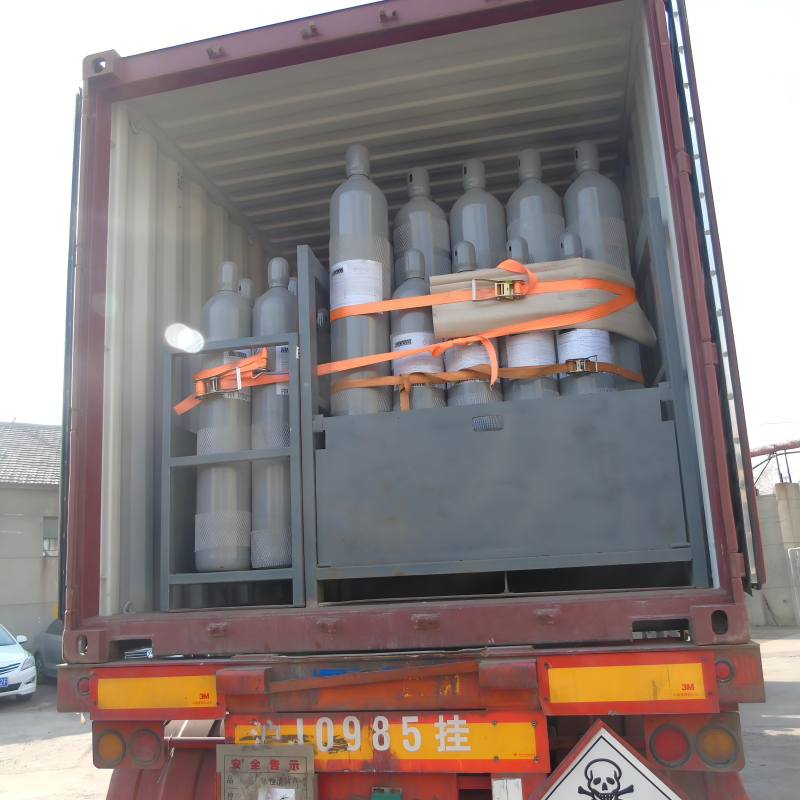

Package & Shipping
| Product | Hydrogen Chloride HCl | ||
| Package Size | 40Ltr Cylinder | 50Ltr Cylinder | T75 ISO Tank |
| Filling Net Weight/Cyl | 25Kgs | 30Kgs | 11400Kgs |
| QTY Loaded in 20’Container | 240 Cyls | 200 Cyls | 1 Unit |
| Total Net Weight | 6 Tons | 6 Tons | 1.14 Tons |
| Cylinder Tare Weight | 52Kgs | 55Kgs | 10000Kgs |
| Valve | CGA 330 | ||
Hello Mr. Arti.
We are so sorry to make your work hard about the transportation.
After confirmed with our transporter, we provide two kinds of ways to solve the transportation problem:
1. FOB Shanghai: We will apply for all the certificates of HCL and Methylamine,。Ship the goods from our factory to Shanghai port and assist you to do the customs clearance when the goods arrive Europe port. So you need to confirm with the Swiss transporter about freight from Shanghai Port to Europe port and to Geneva.
2. CIF Basel: It is from Shanghai port to Rotterdam port then to Basel. The freight is as below:
Freight: USD2600/20GP
Shanghai port handling fee: USD900/20GP
It will take two 20GP to load 100 bottles HCL (2.3) and 12 bottles Methylamine (2.1) gas. Coz HCL is toxic and Methylamine is flammable, they both can't load with other goods depend on MSDS and IMDG regulation.
So the total freight for two GP to Basel is 7000 dollars.
We firmly believe that this product will bring you convenience and enjoyment, and we will make unremitting efforts and continuous innovation to meet your needs. Thank you for choosing our products and look forward to providing you with more quality services.
